RCS Electric Actuators

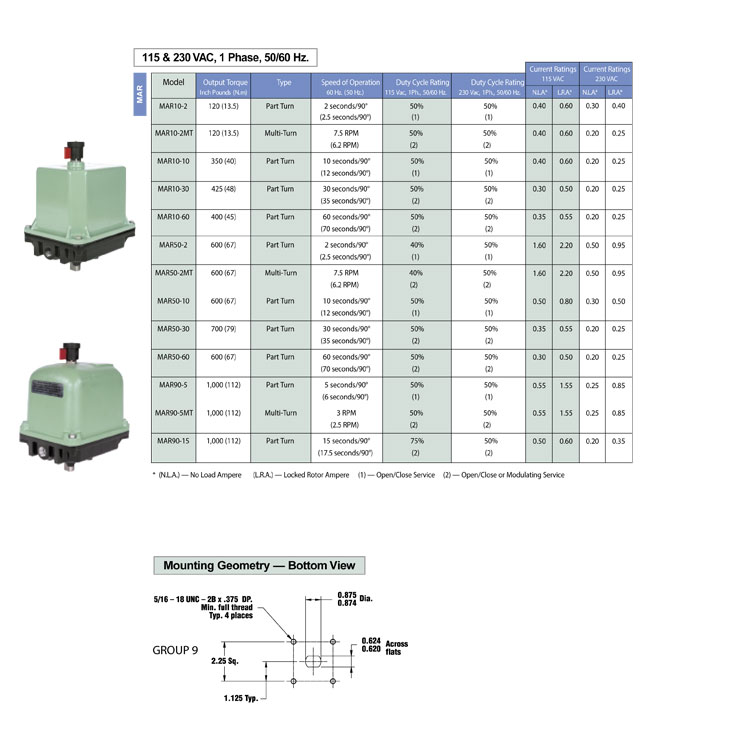

RCS actuators are designed to automate flow control devices for a wide and varied range of applications, from ball, butterfly, and plug valve automation to more specialized applications such as multi-turn and rotary choke valves.

A comprehensive range of modular control accessories allow RCS electric actuators to be tailored to address the most complex process control requirements for either on-off, modulating or digital network protocols. The extensive network of factory-trained authorized service centers provides after-market support for technical and application questions.

Click for PDF - RCS Electric Actuators

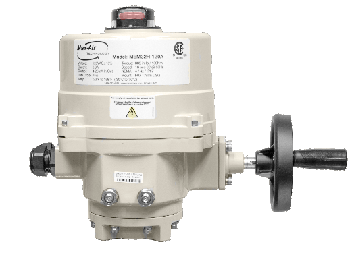

Max-Air ME Series Electric Actuators

ME Series industrial electric actuators come standard with a heavy duty, NEMA 4/4X/IP67 aluminum enclosure, 3D position indicator, auxiliary limit switches, and internal heater.

ME Series actuators are available in 120VAC or dual voltage 24VAC/24VDC models for On/Off/Jog or Modulating control. Additional voltages and customizations also available.

Click for PDF - Max-Air ME Series Electric Actuators

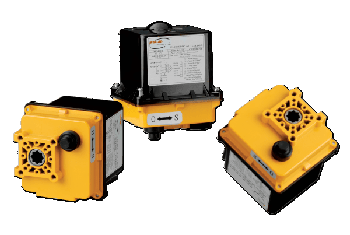

Max-Air AE Series Electric Actuators

The AE Series electric actuators come standard with a polycarbonate semi-transparent lid, LED position indication, auxiliary limit switches, and space heater. AE Series on/off actuators are available in a wide range of voltages and can be specially equipped with dual voltage, fast acting, or extended duty motors.

AE Series modulating actuators are designed for ultimate flexibility and convenience, with selectable 4-20mA or 0-10V input and outputs, sensitivity adjustment, and easy position stop adjustment.

Click for PDF - Max-Air AE Series Electric Actuators

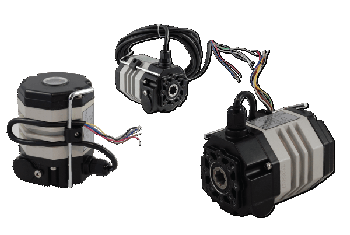

Max-Air MACC Series Electric Actuators

The most compact Max-Air actuator on the market today. This little MACC powerhouse, roughly the size of a soda can, is designed to fit into the smallest of locations, generating 160 in-lbs of torque, comes standard with F03/F04/F05 mounting, auxiliary switches, manual override, visual indication, extended leads, and available in a variety of voltage options.

Click for PDF - Max-Air MACC Series Electric Actuators
